Flagstaff Micro Lite Floorplans

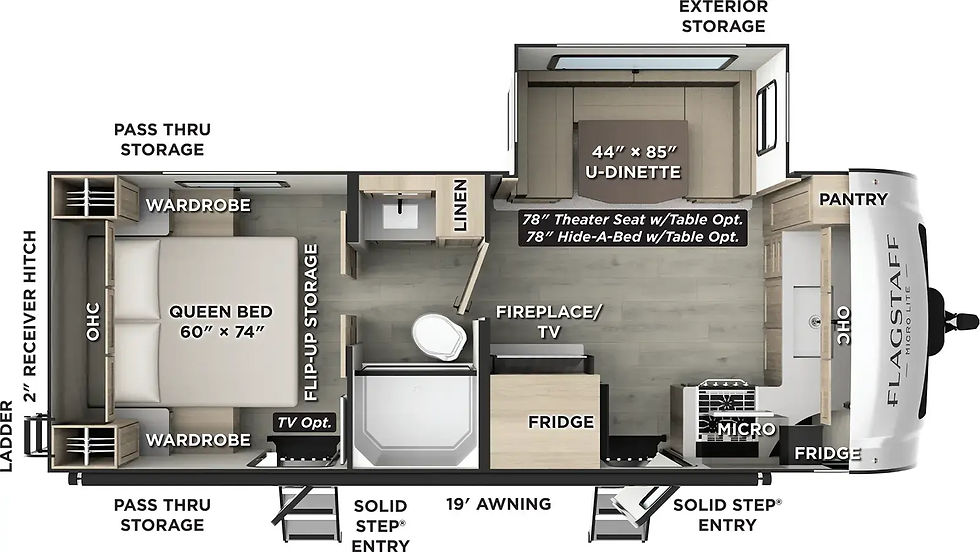

2026 Flagstaff Micro Lite
21FBRS
1/1
This unit has everything you need in a trailer under 23' feet. This big 60" X 74" queen bed with a wardrobe and night stand on both sides has privacy curtains to give the feeling of a separate bedroom. The fan above the bed and the three windows around the bed are added to enhance the camping experience. This trailer has a 72" sofa slide that allows for more space in the kitchen and entertaining center.
Hitch Weight: 557 lb.
UVW: 4,493 lb.
CCC: 1,344 lb.
Exterior Length: 22' 4"
Exterior Height: 10' 3"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 14'
2026 Flagstaff Micro Lite
21SRB
1/1
The 21SRB blends comfort and functionality into a compact, easy-to-tow package. Its front Murphy bed converts to a dinette, giving you flexible living and sleeping space. Enjoy relaxing in the 72" theater seating across from the kitchen, which offers great prep space and storage. A large rear bathroom with a rectangular shower adds comfort and convenience, making the 21SRB perfect for couples or small families.
Hitch Weight: 640 lb.
UVW: 4,789 lb.
CCC: 1,600 lb.
Exterior Length: 22' 2"
Exterior Height: 10' 5"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 15'
2026 Flagstaff Micro Lite
22FBS
1/1
This revised floorplan features wide open living space and a drop frame for large front pass through storage. The baggage door on the front pass through is 30” by 24” which will accommodate all your camping accessories. The floor space in this unit caters to pet-friendly campers with room for kennels and large animal sleeping areas. If you and your pet want to cuddle up next to a nice warm fireplace with some family members on the theater seating, this is the unit for you.
Hitch Weight: 634 lb.
UVW: 5,132 lb.
CCC: 1,662 lb.
Exterior Length: 23' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 18'
2026 Flagstaff Micro Lite
22SQS
1/1
The 22SQS delivers a smart, comfortable layout with a front Murphy bed that maximizes living space by day and provides a restful sleep at night. The U-shaped dinette offers plenty of room for meals, games, or extra sleeping space when needed. A large rear bathroom with a rectangular shower adds everyday comfort and convenience making this floor plan a great choice for couples or small families who want big features in a compact trailer.
Hitch Weight: 748 lb.
UVW: 5,275 lb.
CCC: 1,550 lb.
Exterior Length: 23' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 15'
2026 Flagstaff Micro Lite
25BRDS
1/1
This is the perfect family trailer towing under 26' feet. The double 48" X 72" bunkhouse is awesome for sleeping the kids and even fits adults comfortably. The bottom bunk folds up for even more storage and toys will fit nicely underneath! The big 60" X 74" murphy bed folds up into a sofa for daily use. The giant 18' awning goes almost all the way across your unit while covering the outside kitchen.
Hitch Weight: 773 lb.
UVW: 5,499 lb.
CCC: 1,434 lb.
Exterior Length: 25' 11"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 18'
2026 Flagstaff Micro Lite
25BSDS
1/1
The outside kitchen on this Flagstaff Micro Lite featuring our new griddle, a refrigerator and grill makes cooking so enjoyable and flexible. No need to take the smell of cooking bacon inside. The large wardrobe slide makes packing and organization so easy. The large pantry next to the bathroom covers all your kitchen storage needs as well. The center position of the television in your entertainment spaces makes viewing from any part of the living quarters easy.
Hitch Weight: 660 lb.
UVW: 5,971 lb.
CCC: 1,689 lb.
Exterior Length: 25' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 20'
2026 Flagstaff Micro Lite
25DBH
1/1
The 25DBH is a bunkhouse layout featuring a segregated front bedroom with a true queen bed and dual wardrobe closets for plenty of personal storage. In the main living area, you'll find a large U-shaped dinette, a spacious kitchen and two 36" x 71" bunks- perfect for kids or guests. This layout blends privacy, comfort, and roominess. An ideal setup for families and groups seeking versatile space on the road.
Hitch Weight: 580 lb.
UVW: 5,594 lb.
CCC: 1,986 lb.
Exterior Length: 25' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 18'
2026 Flagstaff Micro Lite
25FBD
1/1
The 25FBD is a beautiful front bedroom floor plan featuring a unique wardrobe/pantry slideout for exceptional storage and organization. The living area includes theater seating directly across from the adjustable “televator” which raises for TV viewing and lowers so you can enjoy the massive door side window views. A versatile dinette and spacious rear kitchen with plenty of counter space completes the thoughtful design.
Hitch Weight: 685 lb.
UVW: 5,794 lb.
CCC: 1,891 lb.
Exterior Length: 25' 9"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 20'
2026 Flagstaff Micro Lite
25FBH
1/1
The 25FBH is built for comfort and family fun, featuring a private rear bunk room that gives kids (or guests) their own space. In the main area, you’ll find a massive U-shaped dinette perfect for meals and lounging, plus a front Murphy bed that easily converts to maximize living space. A large rectangular shower in the bathroom adds everyday convenience, making the 25FBH a great choice for families who want room to relax and recharge on every adventure.
Hitch Weight: 660 lb.
UVW: 6,009 lb.
CCC: 1,651 lb.
Exterior Length: 25' 11"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 29 gal.
Black Water: 29 gal.
Awning Size: 18'
2026 Flagstaff Micro Lite
25FBLS
1/1
This unit is unique with its big 36" sliding doors leading to the bathroom and bedroom. These doors make moving around for a broad shouldered person easier and comfortable. The entertainment center is loaded with 32" tv, a residential-style soundbar and a fireplace space heater. Across from this lovely entertainment center is a 72" theatre seating which is perfect for reclining and watching a good movie.
Hitch Weight: 697 lb.
UVW: 5,756 lb.
CCC: 1,941 lb.
Exterior Length: 25' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 58 gal.
Black Water: 29 gal.
Awning Size: 19'
2026 Flagstaff Micro Lite
25FBT
1/1
2026 Flagstaff Micro Lite
25FKB
1/1
The 25FKB blends spacious comfort with smart design for a great value. The front kitchen offers abundant counter space and storage, perfect for meal prep and entertaining. The U-shaped dinette provides a roomy dining area that can convert to extra sleeping space. (optional Hide-a-Bed or Theater seating) The pass-through bathroom comes equipped with a large rectangular shower, and the rear bedroom gives you a private retreat on the road.
Hitch Weight: 820 lb.
UVW: 5,689 lb.
CCC: 2,131 lb.
Exterior Length: 25' 11"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 58 gal.
Black Water: 29 gal.
Awning Size: 19'
2026 Flagstaff Micro Lite
25MBR
1/1
The front kitchen with a large window creates an open, inviting feel with great campsite views. Theater seating faces the entertainment center for easy viewing, with an optional hide-a-bed for guests. The bedroom includes a queen bed in a slide-out, dresser, and wardrobe with washer/dryer prep. A spacious bathroom with a large shower and linen storage adds comfort and convenience, making this coach feel like home.
Hitch Weight: 710 lb.
UVW: 6,313 lb.
CCC: 1,397 lb.
Exterior Length: 25' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 58 gal.
Black Water: 29 gal.
Awning Size: 15'
2026 Flagstaff Micro Lite
25SRK
1/1
The 25SRK offers a spacious convenient layout with two entry doors providing easy access to the kitchen, bedroom, and bathroom, all while the slides are retracted. The rear kitchen features ample counter space while the living area includes a U-shaped dinette and theater seating. (optional hide-a-bed) The wardrobe slide adds generous storage making this a perfect choice for families or couples seeking flexibility and functionality on the road.
Hitch Weight: 681 lb.
UVW: 5,852 lb.
CCC: 1,829 lb.
Exterior Length: 25' 10"
Exterior Height: 10' 11"
Exterior Width: 96"
Fresh Water: 54 gal.
Gray Water: 58 gal.
Black Water: 29 gal.
Awning Size: 19'
